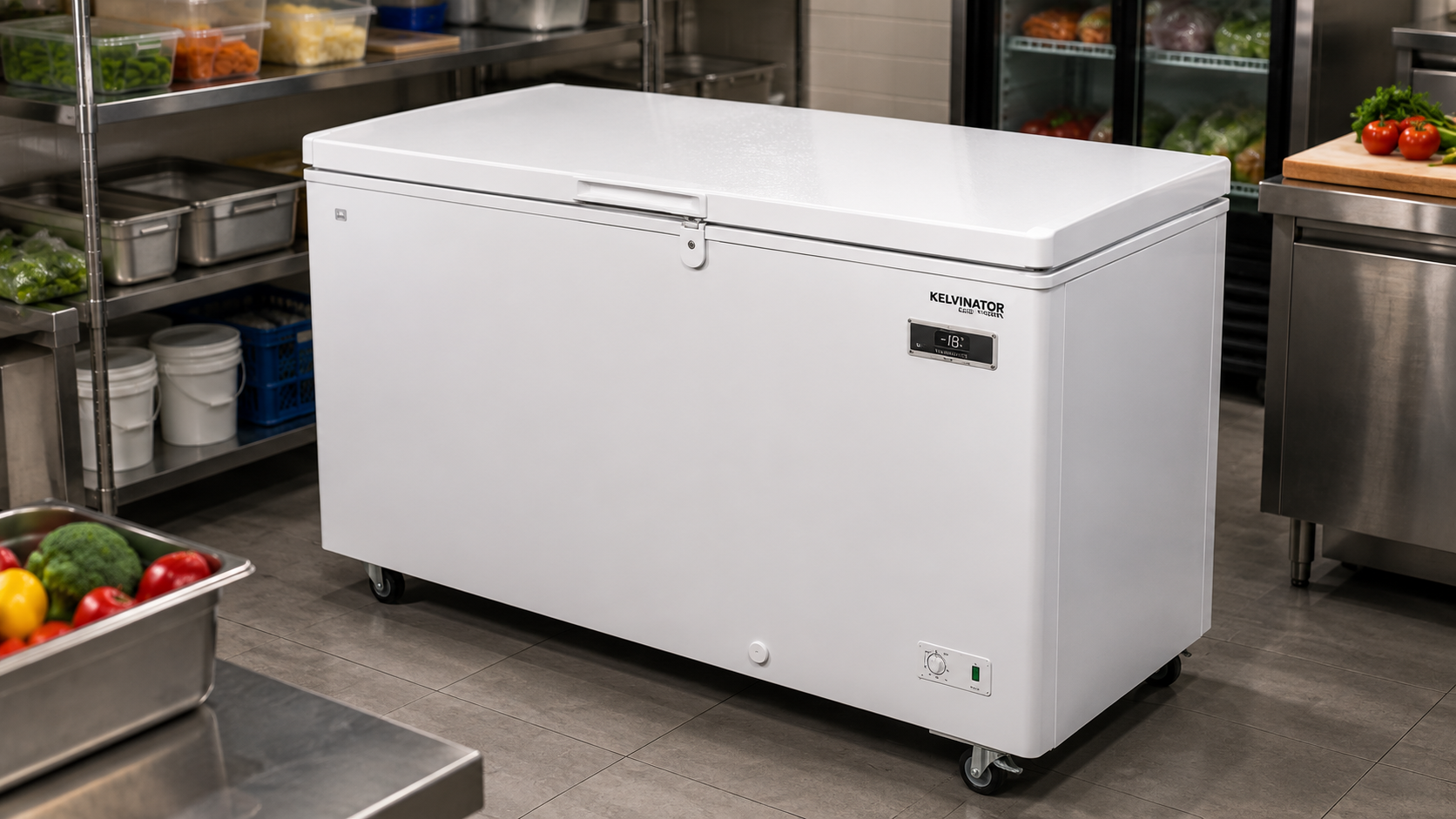

Kelvinator Commercial KCCF140WH offers around 405 litres of frozen storage
The Kelvinator Commercial KCCF140WH is a 52-inch solid-top chest freezer designed for restaurants, food-service businesses and other commercial environments that need substantial frozen storage.
Kelvinator lists gross capacity at 14.3025 cubic feet, which works out to roughly 405 litres. The freezer combines that space with cold-wall cooling, a mechanical thermostat, locking lid, heavy-duty castors and an NSF-certified temperature gauge.
Its commercial focus shows in the details. Kelvinator includes a reinforced foamed lid, removable gasket, bottom drain and storage basket rather than app controls or other consumer-oriented extras.
Kelvinator Commercial KCCF140WH provides about 405 litres of space
The Kelvinator Commercial KCCF140WH provides 14.3 cubic feet of gross freezer capacity.
Kelvinator says the cabinet can hold up to 14 standard three-gallon ice-cream tubs, which gives food-service operators a more practical idea of how much product fits inside.
The internal space measures approximately:
- 1,170mm wide
- 550mm deep
- 673mm high
Those dimensions make the freezer better suited to bulk products than a small undercounter unit.
A coated wire basket with a vertical divider also provides a separate area for smaller items that would otherwise disappear at the bottom of the cabinet.
Cold-wall cooling keeps the design relatively simple
Kelvinator uses cold-wall technology instead of a fan-driven evaporator inside the storage compartment.
The cabinet walls form part of the cooling system and help distribute low temperatures throughout the freezer. Kelvinator describes this arrangement as providing even cooling across the unit.
The company also uses a static condenser design.
Fewer moving components can simplify the refrigeration system, although TechnologyBlog has not independently assessed service requirements or long-term reliability.
The freezer’s operating range extends from -29°C to -12°C.
That gives operators enough adjustment range for different frozen-storage requirements within the limits of the appliance.
An NSF-certified temperature gauge provides visible monitoring
Commercial food storage requires closer temperature monitoring than a typical household freezer.
Kelvinator includes an NSF-certified temperature gauge and internal temperature display.
That gives staff a quick way to check operating conditions without opening the lid.
A visible temperature indication does not remove the need for proper food-safety procedures or independent monitoring where regulations require it.
However, it adds a useful check during daily operation.
The mechanical temperature control keeps operation simple
The KCCF140WH uses a mechanical temperature control panel rather than a digital touchscreen.
That makes adjustment straightforward and avoids adding unnecessary electronics to a freezer intended for continuous commercial use.
The design fits the broader character of the appliance.
Kelvinator focuses on cooling, storage and physical durability rather than connected functions.
For a restaurant storeroom or commercial kitchen, that may be a more important priority than Wi-Fi or smartphone controls.
The locking lid protects the contents
Kelvinator equips the freezer with a locking lid and key.
That can help businesses restrict access to stock, particularly when the freezer sits in a shared preparation or storage area.
A spring-assisted hinge helps control the lid when users open and close it.
Kelvinator also reinforces the lid with foam insulation, which serves two purposes: it improves thermal performance and adds structural rigidity.
For an appliance that staff may open repeatedly throughout a working day, hinge and lid design can matter more than it does in occasional household use.
Heavy-duty castors make the freezer easier to move
The KCCF140WH sits on heavy-duty locking castors.
That allows staff to reposition the freezer for cleaning or servicing without treating it as a permanently fixed appliance.
The locks keep the freezer stationary during normal use.
Kelvinator also adds removable rubber bumper guards, which provide spacing for airflow and help protect the cabinet from minor impacts.
These are small details, but they fit the demands of a working commercial kitchen where equipment may need to move periodically.
Cleaning gets a dedicated drain and removable gasket
Commercial refrigeration needs regular cleaning.
Kelvinator includes a bottom drain with plug, allowing users to remove defrost water and rinse water more easily.
The gasket around the lid can also be removed for cleaning.
Both the interior and exterior use painted white steel, which gives staff a smooth surface to wipe down.
The freezer still requires manual defrosting.
That means operators need to plan regular maintenance rather than expecting a frost-free system to handle ice build-up automatically.
Manual defrost is the main maintenance trade-off
The KCCF140WH uses manual defrost.
That design avoids the additional heaters and controls found in automatic defrost systems, but it also means ice will eventually need to be removed manually.
For a commercial operator, that creates a maintenance consideration.
The freezer must be emptied or managed carefully during defrosting, and staff need to make sure frozen stock remains at safe temperatures.
The bottom drain helps make the process less inconvenient.
R600a handles the refrigeration
Kelvinator uses R600a refrigerant, with a charge of 85g in this model.
R600a, also known as isobutane, appears widely in modern refrigeration equipment because of its low global-warming potential compared with several older refrigerants.
It is flammable, however.
Servicing the sealed refrigeration system therefore requires technicians who understand the correct procedures for hydrocarbon refrigerants.
Kelvinator Commercial KCCF140WH specifications
| Specification | Kelvinator Commercial KCCF140WH |
|---|---|
| Product number | 738230 |
| Type | Solid-top commercial chest freezer |
| Gross capacity | 14.3025 cu. ft. |
| Approximate metric capacity | 405 litres |
| Temperature range | -29°C to -12°C |
| Cooling | Cold-wall |
| Defrost | Manual |
| Temperature control | Mechanical |
| Temperature display | Yes |
| NSF-certified gauge | Yes |
| Storage basket | 1 |
| Ice-cream tub capacity | 14 × 3-gallon tubs |
| Locking lid | Yes |
| Castors | Heavy-duty locking |
| Interior drain | Yes |
| Refrigerant | R600a |
| Refrigerant charge | 85g |
| Compressor | 1/5hp |
| Current consumption | 1.9A |
| Supply | 115V / single phase / 60Hz |
| Plug | NEMA 5-15P |
| Width | 1,314mm |
| Depth | 743mm |
| Height | 915mm |
| Net weight | 68kg |
| Exterior | White pre-painted steel |
| Interior | White pre-painted steel |
Specifications come from Kelvinator Commercial’s current product documentation.
The 115V electrical specification is the big South African problem
For South Africans, the electrical specifications require more attention than the freezer capacity.
Kelvinator lists this exact KCCF140WH configuration for 115V, single-phase, 60Hz electricity, with a US NEMA 5-15P plug.
South Africa uses a nominal 230V, 50Hz electricity supply.
That means buyers should not connect this exact US-market freezer directly to a normal South African wall outlet.
A simple plug adaptor would not solve the voltage difference.
Importing commercial refrigeration that uses the wrong supply voltage can create installation, safety, warranty and servicing complications.
The better approach would be to obtain a version that the manufacturer or an authorised distributor specifically supplies for 220–240V/50Hz operation.
A transformer is not automatically the sensible solution
Technically, step-down equipment can convert supply voltage in some situations.
That does not automatically make importing a 115V commercial freezer a good idea.
A refrigeration compressor has starting-current characteristics that the transformer must handle. Frequency differences can also affect some electrical equipment.
Commercial users additionally need to consider warranty support, spare parts, certification and insurance requirements.
For that reason, TechnologyBlog would recommend verifying a locally compatible Kelvinator specification rather than designing a permanent installation around an imported 115V freezer.
ENERGY STAR applies to the current US model
Kelvinator’s current product catalogue marks the KCCF140WH as an ENERGY STAR product.
That provides useful context for buyers in markets where the programme applies.
However, ENERGY STAR is a US efficiency certification.
South African businesses should not treat that badge as a substitute for local energy labelling or electrical compliance.
The more useful takeaway is that Kelvinator has submitted this model to the relevant US efficiency programme.
The freezer is clearly aimed at commercial environments
Several details separate the KCCF140WH from a typical domestic chest freezer.
The NSF-certified temperature gauge targets food-service use. Locking castors make equipment movement easier, while the locking lid helps businesses control stock access.
The cabinet’s ability to hold 14 standard three-gallon ice-cream tubs also shows exactly which type of environment Kelvinator had in mind.
A household could theoretically use a commercial chest freezer, but that is not the primary design goal.
Is the Kelvinator Commercial KCCF140WH worth considering?
The Kelvinator Commercial KCCF140WH offers a straightforward commercial refrigeration package.
Its roughly 405-litre gross capacity provides substantial frozen storage, while the locking lid, castors, drain, removable gasket and temperature gauge address practical food-service requirements.
The -29°C to -12°C operating range adds flexibility, and cold-wall cooling keeps the refrigeration system relatively simple.
Manual defrost represents the main maintenance trade-off.
For South African buyers, though, the electrical specification overrides almost every other consideration.
This exact product page describes a 115V/60Hz US-market appliance. Until Kelvinator or an authorised distributor confirms a 230V/50Hz version for South Africa, TechnologyBlog should treat the KCCF140WH as an international commercial freezer rather than a ready-to-install local product.
